2017 Harley-Davidson® Electra Glide Ultra Limited - FP8268
Get in Touch
Dealer Notes
USED 2017 HARLEY ULTRA LIMITED FOR SALE IN HARD-TO-FIND COLOR " CHARCOAL DENIM/BLACK DENIM"! THIS IS THE TOP-OF-THE-LINE HARLEY TOURING BIKE, SOLD NEW FOR $30,000! THE MILWAUKEE 8 107 CUBIC INCH MOTOR RUNS STRONG! LOADED WITH EVERY OPTION, OVERSIZED L.E.D SCREEN, BLUETOOTH STEREO, NAVIGATION SYSTEM, CRUISE CONTROL, SECURITY SYSTEM, HEATED GRIPS, HIGHWAY PEGS, REKLUSE CLUTCH (YOU CAN SHIFT WITHOUT PULLING IN THE CLUTCH OR USE IT AS NORMAL), AND MORE! THIS IS ONE COOL BIKE AND A GREAT DEAL ON A COOL, CLEAN BIKE!
Call (810) 648-9500 for more information.
Financing is available with low monthly payments.
See 600+ pre-owned vehicles at https://www.approvalpowersports.com
Fill out a finance app at https://octane.co/flex/713324/
2017 Harley-Davidson® Ultra Limited
Welcome to top-of-the-line touring comfort, dressed out to the nines from the Daymaker™ LED headlamp to the Tour-Pak® luggage carrier.
Find the perfect longitude, latitude and attitude.
If you’re the kind who wants it all, the Ultra Limited gives it to you. From the powerful all-new Twin-Cooled™ Milwaukee-Eight® 107 engine, right down to the heated handgrips. The unmistakable Batwing fairing and Splitstream air vent mean optimal air flow and reduced head buffeting. Premium BOOM!™ Box 6.5 GT touchscreen infotainment and navigation allow rider and passenger to ride to any soundtrack they choose. Electronic cruise control, Reflex Linked Brembo® brakes with ABS, dual LED Daymaker™ headlamps, a premium Tour-Pak® carrier, which can house both rider and passenger helmets, luggage rack, improved seat and one-touch saddlebags all come standard. Which means the ride you’ll experience is anything but standard.
Info
Industry
Powersports
Make
Harley-Davidson®
Model
Electra Glide Ultra Limited
Trim
Base
Year
2017
Price
10910
Stock Number
FP8268
Category
Motorcycle
Subcategory
Touring
Condition
Pre-Owned
Location
Approval Powersports
VIN
1HD1KED13HB608057
Odometer
48941
Color
GRAY/BLACK
Specifications
Seats
2
Enginee
1,745 cc (107 cu in)
Emission
California / US EPA compliant
Horsepower
90 HP @ 5,450 rpm

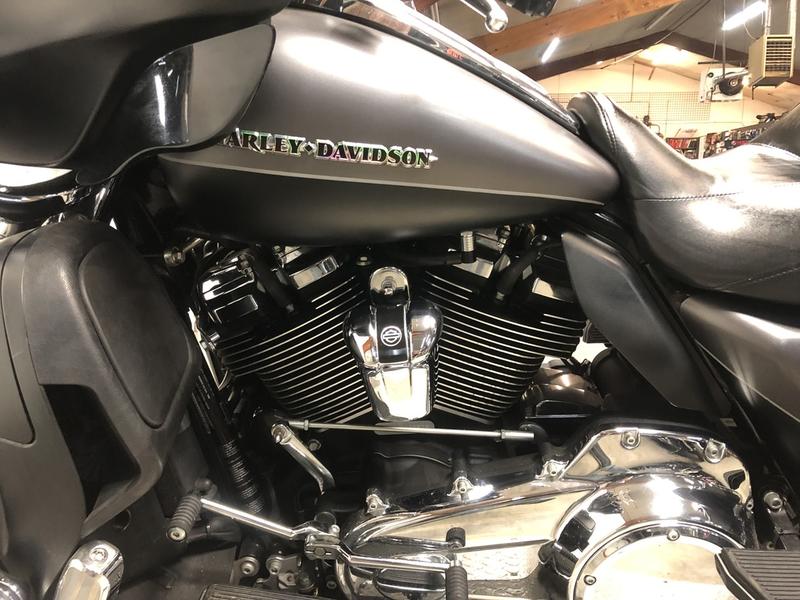

Engine Type
Twin-Cooled™ Milwaukee-Eight™ 107 V-Twin; 4 valves per cylinder
Torque
112 ft-lb (152 Nm) @ 3,250 rpm
Compression Ratio
10.0:1
Family
Touring (Electra Glide)
Upholstery
One-piece, two-up Electra Glide® Comfort Stitch vinyl seat
Engine Cooling
Twin-Cooled™ (Liquid-cooled cylinder heads and Air-cooled cylinders)
Exhaust
Chrome, 2-into-1-into-2 dual exhaust with tapered mufflers
Transmission
6-Speed Cruise Drive® manual
Drive Train
Belt final drive (32/68 ratio)
Chain
Primary chain drive (34/46 ratio)
Clutch
Hydraulically actuated 9-plate wet, Assist & Slip
Bore x Stroke
3.937 in. x 4.375 in.
Primary Drive
Chain
Front Bumper
Chrome front fender guard
Rear Bumper
Chrome saddlebag guard structure
Frame
Mild steel; tubular frame; two-piece stamped and welded backbone; cast/forged junctions; MIG welded
Front Subframe
Bolt-on rear frame with forged fender supports
Rake
26° (Steering head angle)
Trail
6.7 in. (170 mm)
Front Fork
49 mm Showa® Dual Bending Valve (SDBV™) telescopic forks
Right
32°
Left
32°
Swingarm
Mild steel; two-piece drawn and welded section; forged junctions
Suspension (Front)
49 mm Dual Bending Valve technology (4.6 in. / 117 mm travel)
Suspension (Rear)
Premium standard height hand-adjustable emulsion rear shocks (3.0 in. / 76 mm travel)
Front Shocks
Showa dual bending valve internal springs
Rear Shocks
Hand-adjustable gas emulsion shocks
Fuel Type
Premium Unleaded (91 octane or higher)
Fuel Capacity
6.0 gal (22.7 L)
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Fuel Efficiency
43 mpg (5.5 L/100 km) estimated combined
Lubrication System
Pressurized, dry-sump with oil cooler
Oil Type
Harley-Davidson Genuine H-D 360 Motorcycle Oil (20W50)
Oil Capacity
5.0 qt (4.7 L) with filter
Ground Clearance
5.3 in. (135 mm)
Height
56.5 in. (1,440 mm)
Length
102.3 in. (2,600 mm)
Width
37.8 in. (960 mm)
Seat Height
27.5 in. laden / 29.1 in. (740 mm) unladen
GVWR
1,360 lbs. (617 kg)
Weight (Dry)
877 lbs. (398 kg)
Weight (Wet)
910 lbs. (413 kg) in running order
Max Payload
450 lbs. (204 kg)
Front Brake
Reflex™ Linked Brembo® dual floating open rotors with 4-piston fixed calipers
Rear Brake
Reflex™ Linked Brembo® single fixed rotor with 4-piston fixed caliper
Front Caliper
32 mm, 4-piston fixed
Rear Caliper
32 mm, 4-piston fixed
Wheels
Contrast Chrome Impeller Cast Aluminum rims
Wheelbase
64.0 in. (1,625 mm)
Front Wheel (Dia)
17 in. x 3 in.
Rear Wheel (Dia)
16 in. x 5 in.
Front Tire
Dunlop® Harley-Davidson Series D408F BW 130/80B17 65H
Front Tire Width
130 mm
Rear Tire
Dunlop® Harley-Davidson Series D407T BW 180/65B16 81H
Rear Tire Width
180 mm
Silencer
Dual tapered mufflers with internal catalysts
Ride Control
Electronic Cruise Control
Instrumentation

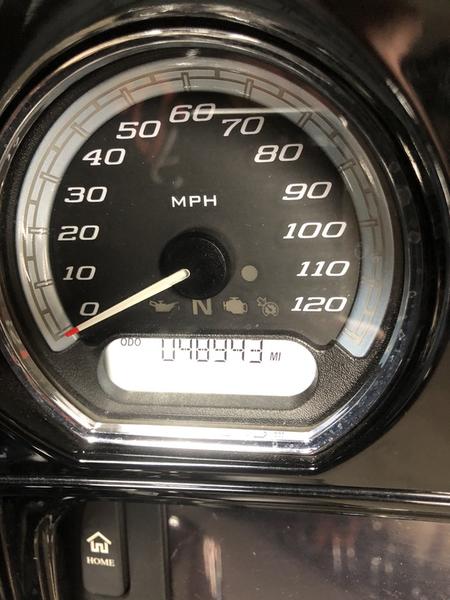

Raised stadium-style gauges (Speedometer, Tachometer, Fuel gauge, Volt gauge); Digital display inside speedometer for gear indicator, odometer, dual trips, clock, and range
Speedometer
Analog face with internal digital multi-readout
Ignition/Starter
Keyless ignition with hands-free Fob / 1.6 kW electric starter
Lighting
Daymaker™ LED headlight, LED passing auxiliary lamps, LED tail/stop light
Headlight(s)
Daymaker™ LED (34W low beam / 37W high beam)
Audio System
Boom!™ Box 6.5 GT audio system with AM/FM/WB receiver and CB radio
Electrical System
Three-phase, 48-amp charging system (600W @ 13V)
Battery
Sealed, maintenance-free, 12V, 28-Ah, 405 CCA
Alternator
48 Amp stator
Fairing
Batwing fairing with Splitstream vent and Tour-Pak® luggage case
Front Fender
Streamlined, low-profile front fender with running lights
Rear Fender
Standard wrap fender with chrome accents
Passenger Foot pegs
Height-adjustable passenger floorboards
Floor boards
Full-length rider footboards with heel/toe shift levers
Cargo System
Injection-molded Tour-Pak® luggage case and hard saddlebags
Rear Rack
Chrome luggage rack on top of Tour-Pak®
Heater
Standard heated handgrips with 6-setting adjustable heat control
Touch Screen Display
6.5-inch full-color touchscreen display with GPS navigation
Door Type
One-Touch latches on saddlebags and fuel door
Active Descent Control
Engine compression braking
Windshield
Standard height clear windscreen
Power Outlet
12V DC power accessory port in fairing and inside Tour-Pak®
Vehicle Protection
Engine guards and saddlebag guards
Security
Smart Security System with hands-free proximity-based security fob
Warranty
24 months, unlimited mileage limited warranty
