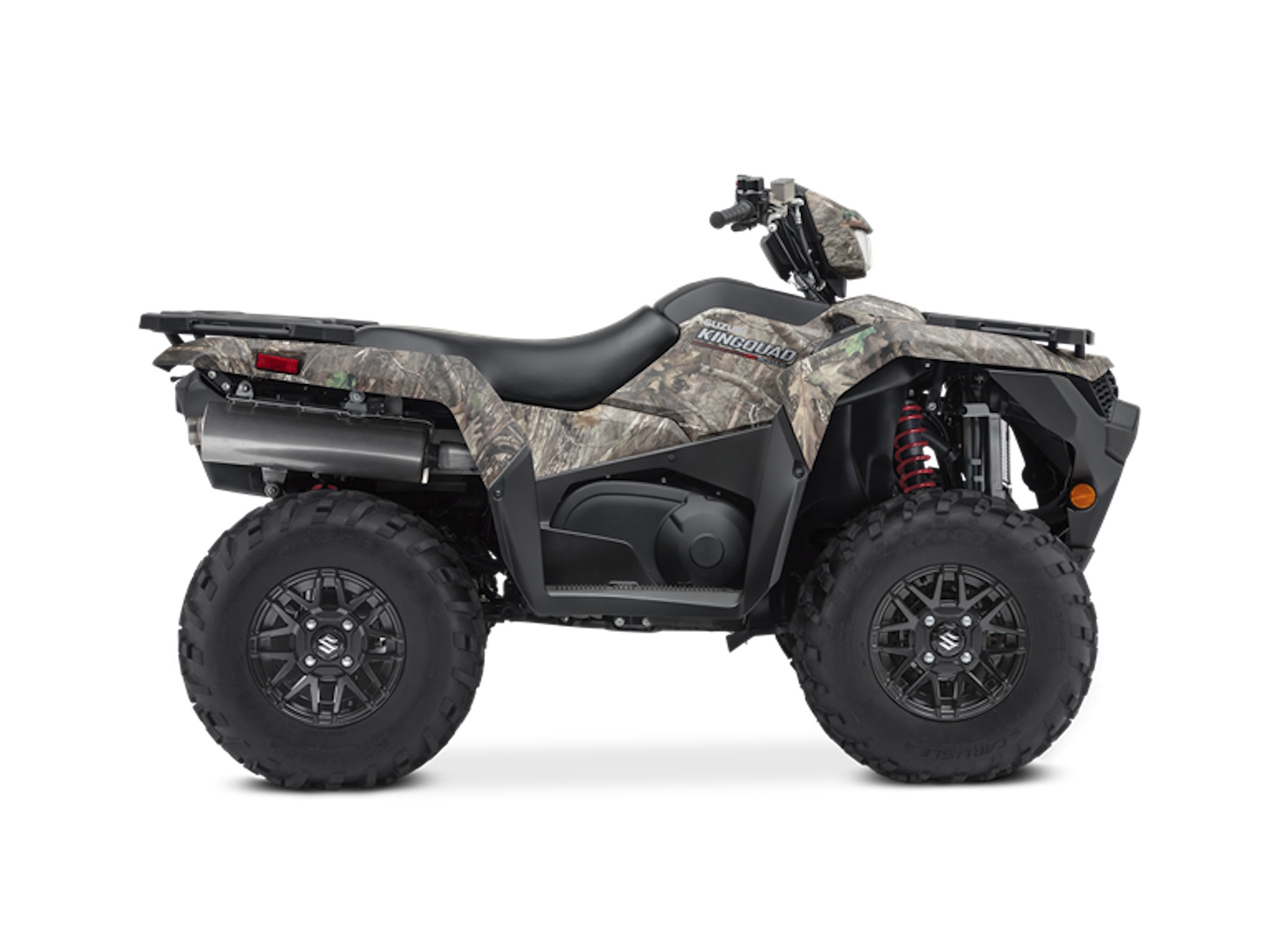

2026 Suzuki KingQuad 500AXi Power Steering SE Camo True Timber Kanati

2026 KingQuad 500AXi Power Steering SE Camo
The KingQuad 500AXi Power Steering SE is not just an ATV, it's a KingQuad ATV.

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The KingQuad 500AXi Power Steering SE helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

Features May Include:

Engine Features

• The powerful, 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power.
• The compact four-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency. Screw and nut valve lash adjusters simplify maintenance.
• Advanced Suzuki Fuel Injection improves throttle response and fuel efficiency while delivering power consistently across the full rev-range and improves engine starting in all conditions.
• The KingQuad achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard and are eligible for California off-highway vehicle (OHV) registration.

Transmission Features

• The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill.
• A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.
• Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.

Chassis Features

• Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment.
• Covered in realistic True Timber Kanati Camouflage the angular bodywork features high-clearance fenders that offer protection for the rider.
• The sealed, multi-plate rear brake system’s foot brake lever ratio helps provide consistent performance. The rear brake’s clutch-type design is highly durable, has reduced unsprung weight, and minimal maintenance requirements.
• High traction 25-inch Carlisle® tires on lightweight, cast aluminum wheels have a special blacked-out finish. Suzuki's plush T-shaped seat delivers rider mobility during spirited or difficult terrain riding.

Electrical Features

• The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for speedometer, odometer, twin trip meter, hour meter, clock, fuel level, riding range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.
• The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high- and low-beam settings) are part of the KingQuad’s distinctive bodywork.
• The high-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.
• Winch-ready mounts and wire conduit make winch installation simple.

Body & Styling Features

• Outdoor-ready True Timber Kanati Camouflage patter coats the aggressive bodywork that features high-clearance fenders that offer great protection for the rider. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.
• The rugged front and rear steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance.
• The handguards (knuckle guards) help protect the rider’s hands from the elements and are styled to match the KingQuad’s bodywork.
• The receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s higher towing capacity (up to 1322 pounds). Including a ball mount, a hitch pin, and an R-clip so it’s easy to setup your ATV for towing (a trailer ball or hook is not included).

Additional Features

• A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, quick-release snowplow, aluminum skid pans, rack extensions, utility box, and more.
• Suzuki’s 24-month limited warranty is much longer than other ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).
• Minimum rider age: 16 years old
